#10 Eoad Redwood

Model: Eoad (Explorer On A Diet)
Weight: 6 lbs 8.2 oz.
Finish: high gloss automotive grade polyurethane (body and headstock) Bridge Builder SuperSilk (neck)
Top: Figured Spalted Redwood
Back: Figured Spalted Redwood
Core: Spanish Cedar
Accent Layer: 3-layer dyed black poplar and redwood (front and back)
Neck Joint: Bolt-on
Neck Material: 1 piece quatersawn flamed maple w/graphite reinforcement bars, 10 degree tilt headstock
Frets: 22 Jescar Evo copper/steel alloy, .047" H x .104" W
Fingerboard: Macassar Ebony
Face Inlay: mother of pearl blocks
Side inlay: Bridge Builder Bright-glo Glow silver with green glow-in-the-dark centers
Fingerboard Radius: compound 9.5”-16”Scale Length: 25.5”
Bridge: Schaller Hannes
Tuners: Hipshot Griplock locking with Industrial buttons
Bridge Pickup: Lollar Imperial Humbucker (standard wind)
Neck Pickup: Lollar Imperial Humbucker (Standard wind)
Nut: black Tusq, 1.6875"Strings: D’Addario NYXL .010”-.046”
Other Features and details:
Custom wiring that allows for tons of tone variations with minimal controls:1. Pick-up selector toggle2. volume3. tone4. Coil tap switch5. Both pick ups in Series switch (bypasses PU toggle, will work in both humbucking and single mode)

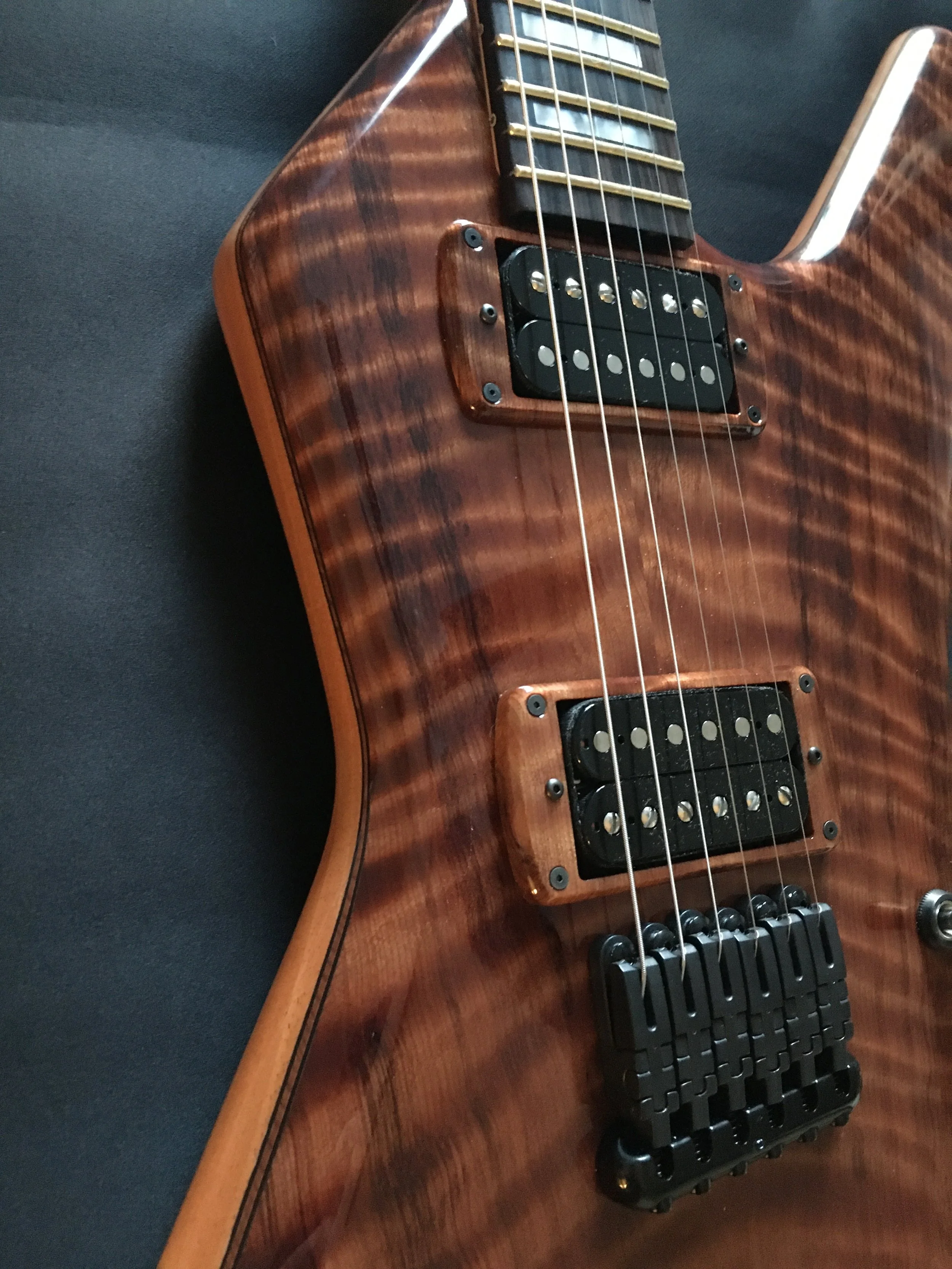

Custom wood pick up rings made from Stabilized redwood, cut from the same top/back woods
Mother of Pearl Bridge Builder inlay
Continuous wood control cover plate, reinforced with carbon fiber to reduce warping
Threaded inserts for cover mounting screws
Threaded brass inserts in neck, asymmetrically positioned stainless steel neck mounting bolts assure a rock solid neck joint
Bourns Pots for Volume and Tone controls
Switchcraft switchboard style box jack (originally designed for use in vintage phone switchboards)
Schaller style strap locks and buttons
UV flashlight included for charging glow in the dark side dots
Hexhead black oxide and stainless steel rust resistant screws used throughout

Completed July 17, 2020
