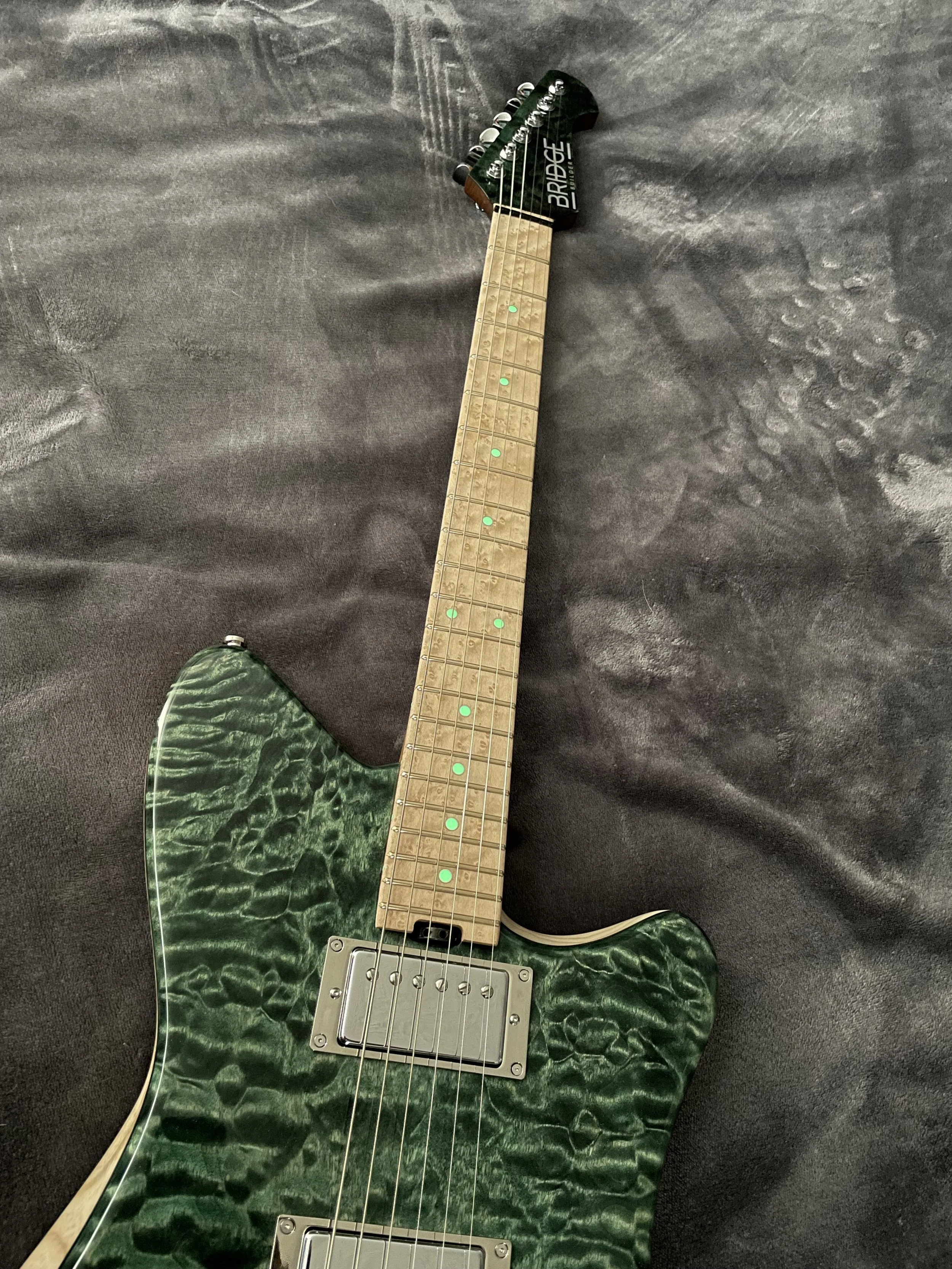

#23 Quilted Maple JazzBuilder “basic”

Model: JazzBuilder
Weight: 6lbs. 3.2oz
Finish: Green stained High gloss polyeureathane (body and headstock), Bridge Builder Super Silk (neck)
Top: Quilted maple
Back: Quilted maple
Core: swamp ash
Accent Layer: single dyed black poplar
Neck Joint: Bolt-on
Neck Material: 1 piecequartersawn roasted maple, inlaid graphite reinforcement bars, flat headstock
Frets: 22 Jescar Evo
Fingerboard: birdseye maple
Face Inlay: 6mm silver ringer with Bright Glow Glow in the Dark Centers
Side inlay: Bridge Builder Bright-glo Glow silver with green glow-in-the-dark centers
Fingerboard Radius: compound 9.5”=16”
Scale Length: 25.5”
Bridge: Schaller Hannes
Tuners: Hipshot Griplock
Bridge Pickup: Gemini Mercury One DualBucker
Neck Pickup: Gemini Mercury One DualBucker
Nut: Earvana 1-5/8”width
Strings: D’Addario NYXL. 010”-.046”
Additional features:
- push/pull pots for dualbucker second voices
-thick body with 1-5/8”thickness
